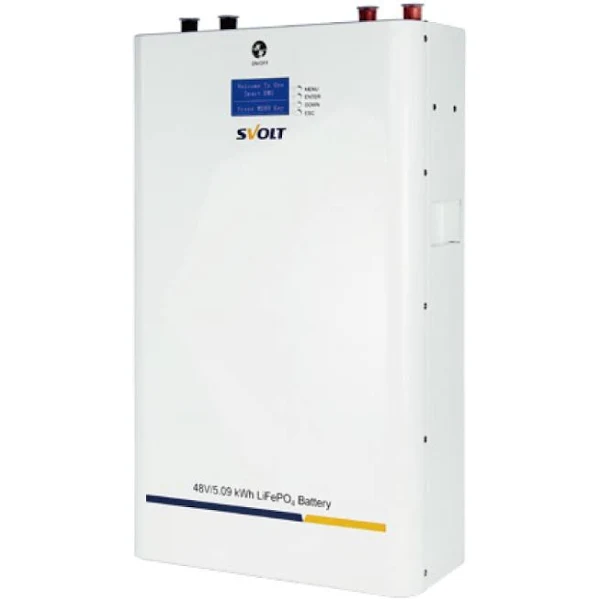

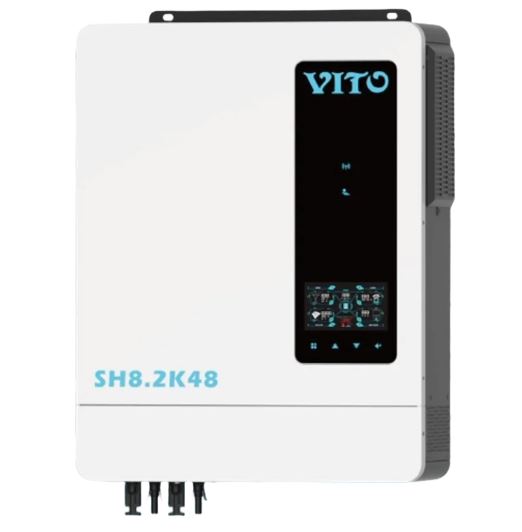

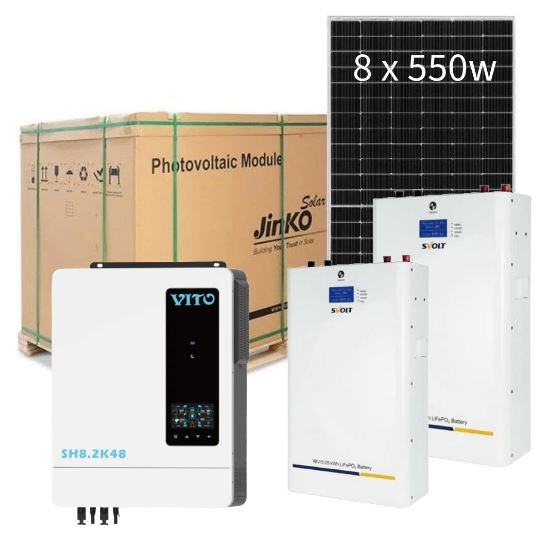

8.2kva Vito Hybrid Inverter 5.09kw SVolt Lithium batteries with 8 x 550w Jinko Solar panel kit.
R51 000,00

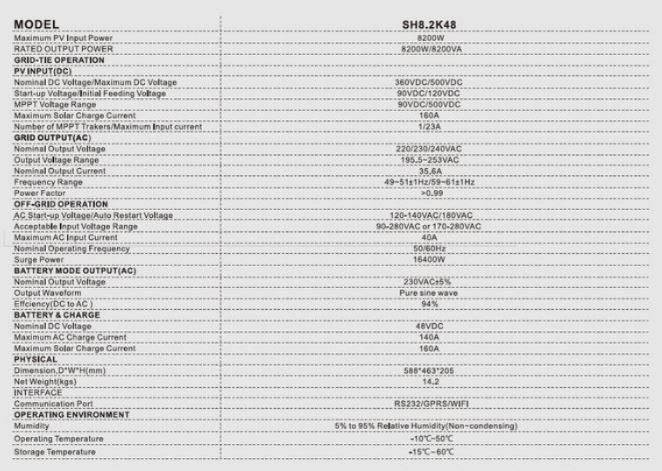

Full Load 8200W
Maximum Main Load 8200W
Maximum Second Load 2733W
Model No: JKM550M-72HL4-V
Cell: Half Cell, Mono Crystalline
No. of Cells: 144(6×24)
Glass: Single Glass 3.2mm AR Coated Tempered
Junction Box: IP68
Connector: MC4
Description
Full Load 8200W
Maximum Main Load 8200W
Maximum Second Load 2733W
Model No: JKM550M-72HL4-V
Cell: Half Cell, Mono Crystalline
No. of Cells: 144(6×24)
Glass: Single Glass 3.2mm AR Coated Tempered
Junction Box: IP68
Connector: MC4
Maximum Rated Power(Pmax): 550W
Maximum Power Voltage(Vmp): 40.90VDC
Maximum Power Current(Imp): 13.45A
Open Circuit Voltage(Voc): 49.62VDC
Short Circuit Current(Isc): 14.03A
Module Efficiency: 21.29%
Maximum System Voltage: 1500VDC
Maximum Series Fuse: 25A
Operating Temperature: -40°C to 85°C
Safety Ratings
• IEC 61215
• IEC 61730
